洪湖市蓝光电子有限责任公司

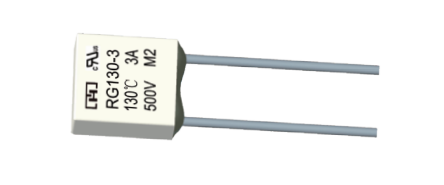

额定电流Rated Current:1A/2A/3A
额定电压Rated Voltage:250V/300V/320V AC
额定动作温度Tf:102C/115C/125℃/130℃/135℃/145℃/150℃/160℃
安全认证Safety Certification:cURus/CCC/TUV
一、额定动作温度(Tf)
在仅通以不超过10mA的探测电流的条件下测得的使热熔断体导电状态改变的温度，热熔断体必须在上述温度0/-10℃范围内动作。
Temperature of the thermal-link which causes it to change its state of conductivity with a detection current up to 10mA as the only load. Thermal fuse must be fusing within the scope of+ 0/-10℃.
二、熔断温度Fusing-off temperature
产品放置油槽内并通以不超过10mA电流值，然后以0.5K/min至1K/min的速率稳定升温，热熔断体实际动作温度值。
The fusing-off temperature indicates value measured in the test oil bath and temperature be increased steadily with a rate of rise between 0.5K/min to 1K/min and detective current 10mA or less.
三、保持温度(Th)
热熔断体在规定的条件下通过额定电流且保温168小时，其导电状态不发生改变的最高温度值或按IEC60691标准测试值。
The maximum temperature at

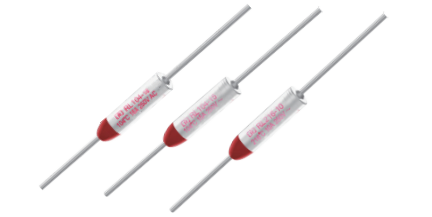

额定电流Rated Current:1A/2A
额定电压Rated Voltage:250VAC
额定动作温度Tf:102C/115℃/125C/130℃/135℃/145℃/150℃/160℃
安全认证Safety Certification:cURus/VDE/TUV/CCC/PSE/KC
一、额定动作温度(Tf)
在仅通以不超过10mA的探测电流的条件下测得的使热熔断体导电状态改变的温度，热熔断体必须在上述温度0/-10℃范围内动作。
Temperature of the thermal-link which causes it to change its state of conductivity with a detection current up to 10mA as the only load. Thermal fuse must be fusing within the scope of+ 0/-10℃.
二、熔断温度Fusing-off temperature
产品放置油槽内并通以不超过10mA电流值，然后以0.5K/min至1K/min的速率稳定升温，热熔断体实际动作温度值。
The fusing-off temperature indicates value measured in the test oil bath and temperature be increased steadily with a rate of rise between 0.5K/min to 1K/min and detective current 10mA or less.
三、保持温度(Th)
热熔断体在规定的条件下通过额定电流且保温168小时，其导电状态不发生改变的最高温度值或按IEC60691标准测试值。
The maximum temperature at wh

额定电流Rated Current:1A-40A
额定电压Rated Voltage:250V/300V/350V/400V/500VAC
安全认证Safety Certification:cURus/CQC/TUV
一、材质Materials
本体 Body:陶瓷管 Ceramic tube
引脚 Lead:铜镀锡 Tin plated copper wire
铜帽 Cap:黄铜镀镍 Nickel plated brass
熔丝 Element:合金Alloy
二、操作温度Operating Temperature
-55℃~125℃
(需考虑温度折减Consider de-rating)
三、可焊性Solderability
260℃,3s Max.(波峰焊Wave)
350±10℃,3s Max.(烙铁焊 Soldering iron)
四、耐焊接热Resstance toSoldering Heat
260C,10s Max.(波峰焊 Wave)
350℃,5s Max.(烙铁焊 Soldering iron)
五、建议焊锡参数Recommended Soldering Parameters
波峰焊Wave soldering parameter
锡炉温度 Soldering pot temperature: 260℃
焊接时间Solder dwell time: 2-5s Max.
手工焊Hand soldering parameter
烙铁温度 Soldering iron temperature:350±5℃
焊接时间Solder dwell time: 5s Max.
